PRODUCTS - Navigation and Navigational Aid Products - OD2 Rudder Angle Indicator Series

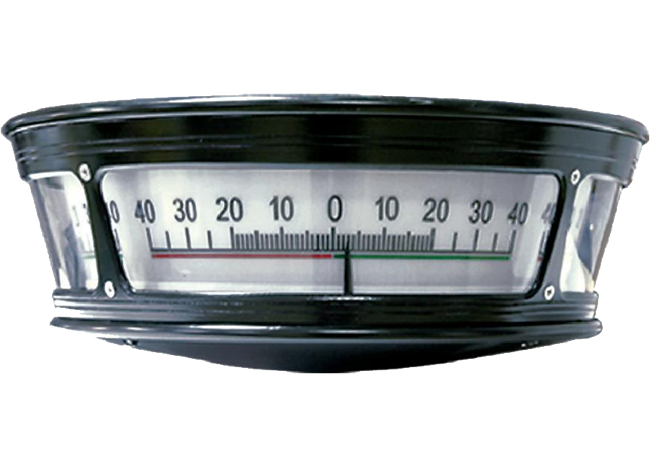

OD2 Rudder Angle Indicator Series
As a core component of a ship's steering system,rudder angle indicator serves to display the real-time deflection angle and direction of the rudder blade.It enables navigators to accurately monitor the rudder blade's status during navigation,thereby facilitating precise control of the vessel's course.Our company's OD2 series rudder angle indicators boast extended service life and high protec- tion ratings.They have been awarded certification by prominent classification societies,including the China Clasification Society (CCS),European Union (EC).
Request a Custom Quote
Product Introduction

▌Main Performance Index



·Power supply：AC110V/AC220V50/60Hz/DC24V

·Damping period of the needle less than 3s

·The rudder angle indication within a range from P40 to S40(or customer designed scale).

·Indicate accuracy：≤1°

·The indicated value can be read clearly at a distance of 1.5 meters.



▌General Composition of The System









▌Product Outline Drawing



Outline of  Rudder Angle Indicator







接線箱外形圖




Dimmer
